CUSTOMIZING BRUSHES
TO YOUR NEEDS
Metal Channel Strip Brush
Shapes & Construction

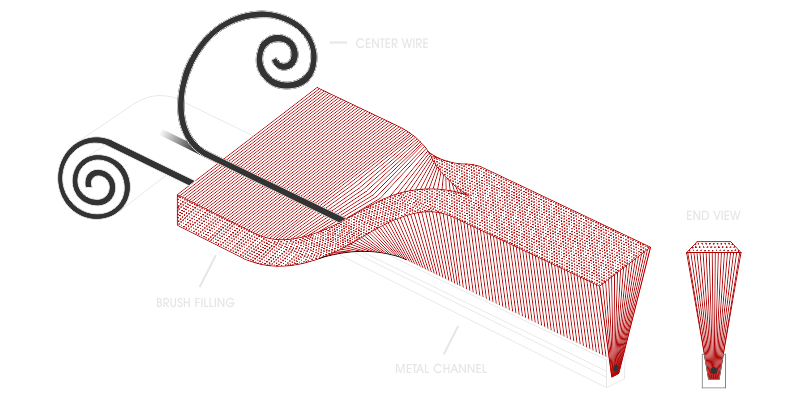

Straight strip brush is made first for all shapes of brushes we produce. It consists of the brush fillings with a center wire laid down over a continuous flat steel belt formed into a “U” shape channel. The fillings pinned down by the center wire and inserted into the “U” shape mental channel. As the mental channel is squeezed tightly and closes over the center wire causes the fillings to form vertically into a brush.
The flexible character of the mental channel strip causes it can be used as a straight strip, outside & inside spirals or disks, cup types, or formed into any required shapes to your needs. Please let us know the necessary information as below, our design team will assist you in creating the perfect brush to meet your needs.
For Straight Strip Brushes:
-
Channel material: Electro-Galvanized Steel, Stainless Steel 304, etc.
-
Channel sizes: width & height
-
Overall Trim (OAT)
-
Overall Length (OAL)
-
Filling material: Natural Fibers, Synthetic Fibers, Wire Filaments, etc.
-
Holders
-
Quantity
For Formed Strip Brushes:
-
Inside Disk: Outside Diameter (OD) & Inside Diameter (ID)
-
Outside Disk coil: Inside Diameter (ID) & outside Diameter (OD)
-
Inside spiral: Outside Diameter (OD) & Inside Diameter, overall length (OAL) and coil spacing
-
Outside spiral: Inside Diameter (ID) & Outside Diameter (OD), face length, coil spacing, core (if any)
-
Cup type: Overall Diameter (OAD) & Overall Trim (OAT) & Face Outside Diameter
-
Quantity
TYPICAL APPLICATIONS
Dust & Insect Prevention, Gap Seals
. Escalator
. Doors & Windows
. Hardware & Building Materials
. Machine Tools
. Wood & Furniture Industry
. Conveyor belts
Polishing
. Metal Industry
. Color steel plate & Steel tile
. Tanning & Shoemaking Industry
. Ceramic Industry
. Metallurgy
Cleaning
. Food processing
. Glass making
. Cleaning assembly line
. Environmental Sanitation
. Environmental Protection
. Vacuum
Grinding
. Hydraulic & Pneumatic Industry
. Compressor
. Gear machining
. Deep hole working
Anti-static
. Textile Industry
. Paper Making
. Printing
. Cigarette Industry
. Electronics Industry
. Packaging
ABOUT US
Huana Brush started in 2012. Selecting professional brush products starts from this moment and we sincerely provide professional brush solutions to you. Although we are in Changzhou, China, distance cannot stop us from serving you,for we are wiling to do that! The products are few, but we are professional. In order to be professional, we chose to move on with persistence, so we only focus on manufacturing brush! If you are in need of brush, please contact us, because customization is our advantage!
